The Mosley MP-33, Tig-Array incorporates Mosley famous metal encased Trap-Master Junior and Senior Traps. This hy-brid combines the light weight and smaller footprint characteristics of the Junior but allows higher power like the Senior.
Rugged construction and designed for the amateur with a limited space and a tight budget. The Trap Master series addresses everyone's needs from power handling capabilities to frequency coverage. The great feature about the Trap Master series is they are never obsolete!
Kits can be expanded or reduced to various configurations from a rotatable dipole to a multi-element beam. You can add other frequencies or even add more elements for better performance. SEE CONVERSION KITS
Our hardware is made of the best grade of stainless steel and our tubing is aircraft grade drawn aluminum. As with all Mosley Amateur antennas the warranty is two year against any defects of material or workmanship.
"MP" Series Hy-Brid Tig Array
Automatic band switching by means of high-impedance resonant trap circuits.
AUTOMATIC BAND SWITCHING
by means of high-impedance resonant trap circuits!
Mosley reserves the right to change product and material specifications without prior notice or obligation.
Model
Frequency, MHz
Power Rating, watts CW
Power Rating, watts SSB
Power Rating, AM/FM
Power Rating, RTTY/AMTOR
VSWR at frequency
Forward Gain, dBd / Elements on 10 m
Forward Gain, dBd / Elements on 12 m
Forward Gain, dBd / Elements on 15 m
Forward Gain, dBd / Elements on 17 m
Forward Gain, dBd / Elements on 20 m
Front-to-Back Ratio, dB 10 m
Front-to-Back Ratio, dB 12 m
Front-to-Back Ratio, dB 15 m
Front-to-Back Ratio, dB 17 m
Front-to-Back Ratio, dB 20 m
Boom Length
Maximum Element Length
Turning Radius
Mast Mount hardware (equipped)
Assembled Weight
Wind Surface Area
Wind Load, EIA Standard 80 MPH
Warranty
Recommended Coax
MP-32-N
28, 21, 14
1500
2500
600
600
1.0/1 to 1.6/1
5.5 / 2
-
4.5 / 2
-
3.1 / 2
20
-
20
-
20
6 ft / 1.83 m
26.67 ft / 8.13 m
13.75 ft / 4.19 m
1.5 in / 3.81 cm
15.5 lbs / 7.03 kg
3.3 sq ft / 0.30 sq m
74 lbs / 33.56 kg
2 years
RG-8 / RG-213
MP-33-N
28, 21, 14
1500
2500
600
600
1.0/1 to 1.6/1
8.0 / 3
-
6.8 / 3
-
5.8 / 3
20
-
20
-
20
12 ft / 3.66 m
26.67 ft / 8.13 m
14.75 ft / 4.50 m
1.5 in / 3.81 cm
21 lbs / 9.53 kg
4.7 sq ft / 0.436 sq m
86 lbs / 39.01 kg
2 years
RG-8 / RG-213
MP-33-NW
28, 24, 21, 18, 14
1500
2500
600
600
1.0/1 to 1.6/1
8.0 / 3
0 / 1
6.8 / 3
0 / 1
5.8 / 3
20
0
20
0
20
12 ft / 3.66 m
27.08 ft / 8.25 m
14.81 ft / 4.51 m
1.5 in / 3.81 cm
29 lbs / 13.15 kg
5.4 sq ft / 0.502 sq m
116 lbs / 52.62 kg
2 years
RG-8 / RG-213
Trap Master 'Senior' TA
Model
Frequency, MHz
Power Rating, watts CW
Power Rating, watts SSB
Power Rating, AM/FM
Power Rating, RTTY/AMTOR
VSWR at frequency
Forward Gain, dBd / Elements on 10 m
Forward Gain, dBd / Elements on 12 m
Forward Gain, dBd / Elements on 15 m
Forward Gain, dBd / Elements on 17 m
Forward Gain, dBd / Elements on 20 m
Front-to-Back Ratio, dB 10 m
Front-to-Back Ratio, dB 12 m
Front-to-Back Ratio, dB 15 m
Front-to-Back Ratio, dB 17 m
Front-to-Back Ratio, dB 20 m
Boom Length
Maximum Element Length
Turning Radius
Mast Mount hardware (equipped)
Assembled Weight
Wind Surface Area
Wind Load, EIA Standard 80 MPH
Warranty
Recommended Coax

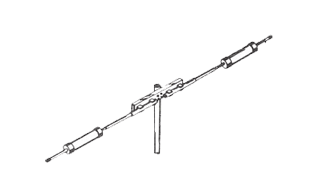

TA-31-M
28, 21, 14
1500
2500
600
600
1.0/1 to 1.5/1
0 / 1
-
0 / 1
-
0 / 1
0
-
0
-
0
-
23.92 ft / 7.29 m
12 ft / 3.66 m
1.5 in / 3.81 cm
11 lbs / 4.99 kg
1.2 sq ft / 0.111 sq m
40 lbs / 18.14 kg
2 years
RG-8 / RG-213
TA-32-M
28, 21, 14
1500
2500
600
600
1.0/1 to 1.5/1
5.5 / 2
4.6 / 2
3.8 / 2
20
20
20
7 ft / 2.14 m
28 ft / 8.53 m
14.5 f t / 4.42 m
1.5 in / 3.81 cm
26 lbs / 11.79 kg
3.7 sq ft / 0.34 sq m
74 lbs / 33.57 kg
2 years
RG-8 / RG-213

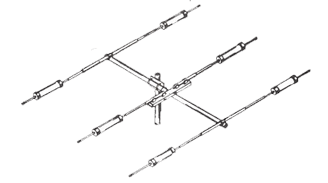

TA-33-M
28, 21, 14
1500
2500
600
600
1.0/1 to 1.4/1
8.3 / 3
7.3 / 3
6.5 / 3
20
20
20
14 ft / 4.27 m
28 ft / 8.53 m
15.5 ft / 4.72 m
1.5 in / 3.81 cm
37 lbs / 16.78 kg
5.7 sq ft / 0.530 sq m
114 lbs / 51.71 kg
2 years
RG-8 / RG-213
TA-33-MW
28, 24, 21, 18, 14
1500
2500
600
600
1.0/1 to 1.4/1
8.3 / 3
0 / 1
7.3 / 3
0 / 1
6.5 / 3
20
0
20
0
20
14 ft / 4.27 m
28 ft / 8.53 m
15.5 ft / 4.72 m
1.5 in / 3.81 cm
46 lbs / 20.87 kg
6.7 sq ft / 0.622 sq m
129 lbs / 58.51 kg
2 years
RG-8 / RG-213
Why Buy A Copy of a Mosley?
HERE'S THE ORIGINAL
None Better HAVE EVER BEEN Made!
The Trap Master series, still the most copied, broadband, multi-band beams made! Rugged construction and designed for the amateur with a limited space and a tight budget. The Trap Master series addresses everyone's needs from power handling capabilities to frequency coverage. The great feature about the Trap Master series is they are never obsolete. Kits can be expanded or reduced to various configurations from a rotatable dipole to a multi-element beam. SEE CONVERSION KITS
As with all Mosley antennas, pieces are all pre-drilled and color coded, which makes assembly quick and easy. Our hardware is made of the best grade of stainless steel and our tubing is aircraft grade drawn aluminum.
Trap Master 'TA' 5 & 6 Band Beams
Model
Frequency, MHz
Power Rating, watts CW
Power Rating, watts SSB
Power Rating, AM/FM
Power Rating, RTTY/AMTOR
VSWR at frequency
Forward Gain, dBd / Elements on 10 m
Forward Gain, dBd / Elements on 12 m
Forward Gain, dBd / Elements on 15 m
Forward Gain, dBd / Elements on 17 m
Forward Gain, dBd / Elements on 20 m
Front-to-Back Ratio, dB 10 m
Front-to-Back Ratio, dB 12 m
Front-to-Back Ratio, dB 15 m
Front-to-Back Ratio, dB 17 m
Front-to-Back Ratio, dB 20 m
Boom Length
Maximum Element Length
Turning Radius
Mast Mount hardware (equipped)
Assembled Weight
Wind Surface Area
Wind Load, EIA Standard 80 MPH
Warranty
Recommended Coax

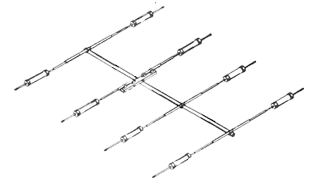

TA-34-XL
28, 21, 14
1500
2500
600
600
1.0/1 to 1.6/1
9.5 / 4
-
9.1/ 4
-
8.2 / 4
18
-
18
-
18
21 ft / 6.40 m
28 ft / 8.53 m
17.75 ft / 5.41 m
2 in / 5.08 cm
68 lbs / 30.84 kg
6.9 sq ft / 0.641 sq m
164 lbs / 74.39 kg
2 years
RG-8 / RG-213
TA-34-XLW
28, 24, 21, 18, 14
1500
2500
600
600
1.0/1 to 1.6/1
9.5 / 4
0 /1
9.1/ 4
0 / 1
8.2 / 4
18
0
18
0
18
21 ft / 6.40 m
28 ft / 8.53 m
17.75 ft / 5.41 m
2 in / 5.08 cm
78 lbs / 35.38 kg
7.7 sq ft / 0.715 sq m
174 lbs / 78.93 kg
2 years
RG-8 / RG-213
TRUE FOUR ELEMENT
TRI-BANDER!
for 10, 15, 20 Meters!
The TA-53-M was designed back in 1990 to give the Ham who would like to have a 3 element beam on 5 bands, but who needs to keep the size of the antenna to minimum. The design criteria was:
•
A very broad band capability, which will easily work with the new solid state rigs.
•
An antenna that was as compact as possible to justify its use on five bands.
•
To tune for optimum gain, for a "5" band beam on a 14' boom.
•
To minimize the self interaction of the antennas operating frequencies due to the close proximity to each other on the various bands.
•
Build it to withstand any above average environments.
We feel this has been accomplished only at the expense of front to back. We considered this to be the least area of importance considering only one director and one reflector spaced over a 14' boom working on five bands.
For the ham that wants a heavy duty all around performer the TA-53-M is for you. It will equal or exceed anyone's 3 element beam on a 14 foot boom in the areas of gain, band width, swr and construction.
In 2006, 6 meters was added to the TA-53-M introducing the TA-63-N. Later that year the boom was extended to 21 feet giving the Amateur another option for those who could not put a PRO design due to size and weight limitations.
See TA-54-XL and TA-54-XLN6
Model
Frequency, MHz
Power Rating, watts CW
Power Rating, watts SSB
Power Rating, AM/FM
Power Rating, RTTY/AMTOR
VSWR at frequency
Forward Gain, dBd / Elements on 6 m
Forward Gain, dBd / Elements on 10 m
Forward Gain, dBd / Elements on 12 m
Forward Gain, dBd / Elements on 15 m
Forward Gain, dBd / Elements on 17 m
Forward Gain, dBd / Elements on 20 m
Front-to-Back Ratio, dB 6 m
Front-to-Back Ratio, dB 10 m
Front-to-Back Ratio, dB 12 m
Front-to-Back Ratio, dB 15 m
Front-to-Back Ratio, dB 17 m
Front-to-Back Ratio, dB 20 m
Boom Length
Maximum Element Length
Turning Radius
Mast Mount hardware (equipped)
Assembled Weight
Wind Surface Area
Wind Load, EIA Standard 80 MPH
Warranty
Recommended Coax
Mosley reserves the right to change product and material specifications without prior notice or obligation.
TA-53-M
28, 24, 21, 18, 14
1500
2500
600
600
1.0/1 to 1.65/1
-
7.9 / 3
7.1 / 3
6.9 / 3
6.7 / 3
6.5 / 3
-
16
8
13
12
10
14 ft / 4.27 m
26.67 ft / 8.13 m
14.92 ft / 4.55 m
2 in / 5.08 cm
55 lbs / 24.95 kg
6.7 sq ft / 0.622 sq m
160 lbs / 72.58 kg
2 years
RG-8 / RG-213
TA-63-N
50, 28, 24, 21, 18, 14
1500
2500
600 / 250 (6 meters)
600 / 250 (6 meters)
1.0/1 to 1.65/1
6.9 / 3
7.9 / 3
7.1 / 3
6.9 / 3
6.7 / 3
6.5 / 3
20
16
8
13
12
10
14 ft / 4.27 m
29.5 ft / 8.99 m
16.3 ft / 4.97 m
2 in / 5.08 cm
57 lbs / 25.86 kg
6.9 sq ft / 0.641 sq m
160 lbs / 72.58 kg
2 years
RG-8 / RG-213
TA-54-XL
28, 24, 21, 18, 14
1500
2500
600
600
1.0/1 to 1.65/1
-
8.2 / 4
8.1 / 4
7.9 / 4
7.7 / 4
7.5 / 4
-
16
10
15
14
15
21 ft / 6.40 m
29.5 ft / 8.99 m
18.12 ft / 5.52 m
2 in / 5.08 cm
80 lbs / 36.29 kg
8.7 sq ft / 0.808 sq m
196 lbs / 88.90 kg
2 years
RG-8 / RG-213
TA-54-XLN-6
50, 28, 24, 21, 18, 14
1500
2500
600 / 250 (6 meters)
600 / 250 (6 meters)
1.0/1 to 1.65/1
6.9 / 3
8.2 / 4
8.1 / 4
7.9 / 4
7.7 / 4
7.5 / 4
20
16
10
15
14
15
21 ft / 6.40 m
29.5 ft / 8.99 m
18.12 ft / 5.52 m
2 in / 5.08 cm
87 lbs / 39.46 kg
8.8 sq ft / 0.818 sq m
199 lbs / 90.27 kg
2 years
RG-8 / RG-213
Trap Master 'TW' WARC Band Beams
Model
Frequency, MHz
Power Rating, watts CW
Power Rating, watts SSB
Power Rating, AM/FM
Power Rating, RTTY/AMTOR
VSWR at frequency
Forward Gain, dBd / Elements on 12 m
Forward Gain, dBd / Elements on 17 m
Front-to-Back Ratio, dB 12 m
Front-to-Back Ratio, dB 17 m
Boom Length
Maximum Element Length
Turning Radius
Mast Mount hardware (equipped)
Assembled Weight
Wind Surface Area
Wind Load, EIA Standard 80 MPH
Warranty
Recommended Coax
Model
Frequency, MHz
Power Rating, watts CW
Power Rating, watts SSB
Power Rating, AM/FM
Power Rating, RTTY/AMTOR
VSWR at frequency
Forward Gain, dBd / Elements on 12 m
Forward Gain, dBd / Elements on 17 m
Forward Gain, dBd / Elements on 30 m
Front-to-Back Ratio, dB 12 m
Front-to-Back Ratio, dB 17 m
Front-to-Back Ratio, dB 30 m
Boom Length
Maximum Element Length
Turning Radius
Mast Mount hardware (equipped)
Assembled Weight
Wind Surface Area
Wind Load, EIA Standard 80 MPH
Warranty
Recommended Coax
TW-21-M
24, 18
1500
2500
600
600
1.0/1 to 1.5/1
0 / 1
0 / 1
0
0
-
23.92 ft / 7.29 m
12 ft / 3.66 m
1.5 in / 3.81 cm
11 lbs / 4.99 kg
1.2 sq ft / 0.111 sq m
40 lbs / 18.14 kg
2 years
RG-8 / RG-213
TW-22-M
24, 18
1500
2500
600
600
1.0/1 to 1.5/1
5.5 / 2
3.8 / 2
20
20
7 ft / 2.14 m
28 ft / 8.53 m
14.5 ft / 4.42 m
1.5 in / 3.81 cm
26 lbs / 11.79 kg
3.7 sq ft / 0.34 sq m
74 lbs / 33.57 kg
2 years
RG-8 / RG-213
TW-23-M
24, 18
1500
2500
600
600
1.0/1 to 1.5/1
7.2 / 3
6.8 / 3
20
20
14 ft / 4.27 m
28 ft / 8.53 m
15.5 ft / 4.72 m
1.5 in / 3.81 cm
37 lbs / 16.78 kg
5.7 sq ft / 0.530 sq m
114 lbs / 51.71 kg
2 years
RG-8 / RG-213
TW-24-XL
24, 18
1500
2500
600
600
1.0/1 to 1.5/1
9.0 / 4
8.4 / 4
20
20
21 ft / 6.40 m
28 ft / 8.53 m
17.75 ft / 5.41 m
2 in / 5.08 cm
68 lbs / 30.84 kg
6.9 sq ft / 0.641 sq m
184 lbs / 83.46 kg
2 years
RG-8 / RG-213
As with all Mosley antennas, pieces are all pre-drilled and color coded, which makes assembly quick and easy. Our hardware is made of the best grade of stainless steel and our tubing is aircraft grade drawn aluminum.
The warranty is two year against any defects of material or workmanship.
TW-31-XL
24, 18, 10
1500
2500
600
600
1.0/1 to 1.5/1
0 / 1
0 / 1
0 / 1
0
0
0
-
34.17 ft / 10.42 m
17.08 ft / 5.21 m
2 in / 5.08 cm
20 lbs / 9.07 kg
1.8 sq ft / 0.167 sq m
48 lbs / 21.77 kg
2 years
RG-8 / RG-213
TW-32-XL
24, 18, 10
1500
2500
600
600
1.0/1 to 1.5/1
5.5 / 2
4.6 / 2
3.8 / 2
20
20
18
12 ft / 3.66 m
36.46 ft / 11.11 m
19.19 ft / 5.85 m
2 in / 5.08 cm
35 lbs / 15.88 kg
4.0 sq ft / 0.372 m
80 lbs / 36.29 kg
2 years
RG-8 / RG-213
TW-33-XL
24, 18, 10
1500
2500
600
600
1.0/1 to 1.5/1
7.2 / 3
6.8 / 3
6.0 / 3
20
20
18
18 ft / 5.49 m
36.46 ft / 11.11 m
20.33 ft / 6.20 m
2 in / 5.08 cm
55 lbs / 24.95 kg
7.2 sq ft/ 0.669 sq m
180 lbs / 81.56 kg
2 years
RG-8 / RG-213
TW-34-XL
24, 18, 10
1500
2500
600
600
1.0/1 to 1.5/1
9.0 / 4
8.4 / 4
6.8 / 4
20
20
18
24 ft / 7.32 m
36.46 ft / 11.11 m
21.82 ft / 6.65 m
2 in / 5.08 cm
69 lbs / 31.30 kg
10.7 sq ft / 0.994 sq m
210 lbs / 95.25 kg
2 years
RG-8 / RG-213
ADD 30 or 40 METERS!
SEE CONVERSION KITS
"SENIOR" MP / TA / TW Series Multi-Band
THE TRAP MASTER SERIES, STILL THE MOST COPIED, BROADBAND, MULTI-BAND BEAMS MADE!
Mosley reserves the right to change product and material specifications without prior notice or obligation.
Select Quality, Specify Mosley...
...Mosley, a better Antenna!
Automatic band switching by means of high-impedance resonant trap circuits.
