The CLASSIC antennas are heavy duty beams for 10, 15, 20 Meters! Built in the MOSLEY tradition providing DECADES of great performance!

The Mosley "Classic" match gives the antenna excellent bandwidth while maintaining a high 'Q' throughout all three bands. See FAQ for details.

As with all Mosley antennas, band switching is automatic by means of high-impedance resonant trap circuits. The exclusive Mosley trap design provides resonant stability under all conditions!

Elements and boom pieces are all pre-drilled and color coded, which makes assembly quick and easy.

Our hardware is made of the best grade of stainless steel and our tubing is aircraft grade drawn aluminum. As with all Mosley Amateur antennas the warranty is two year against any defects of material or workmanship.

"CLASSIC" CL Series

"TRIED & TRUE"

Model

Frequency, MHz

Power Rating, watts CW

Power Rating, watts SSB

Power Rating, AM/FM

Power Rating, RTTY/AMTOR

VSWR at frequency

Forward Gain, dBd / Elements on 10 m

Forward Gain, dBd / Elements on 12 m

Forward Gain, dBd / Elements on 15 m

Forward Gain, dBd / Elements on 17 m

Forward Gain, dBd / Elements on 20 m

Front-to-Back Ratio, dB 10 m

Front-to-Back Ratio, dB 12 m

Front-to-Back Ratio, dB 15 m

Front-to-Back Ratio, dB 17 m

Front-to-Back Ratio, dB 20 m

Boom Length

Maximum Element Length

Turning Radius

Mast Mount hardware (equipped)

Assembled Weight

Wind Surface Area

Wind Load, EIA Standard 80 MPH

Warranty

Recommended Coax

CL-33-M

28, 21, 14

1500

2500

600

1.0/1 to 2.0/1

8.5 / 3

8.1 / 3

7.3 / 3

18 ft / 5.49 m

27 ft / 8.23 m

16 ft / 4.88 m

2 in / 5.08 cm

42 lbs / 19.05 kg

6.0 sq ft / 0.557 sq m

120 lbs / 54.43 kg

2 years

RG-8 / RG-213

CL-33-MW

28, 24, 21, 18, 14

1500

2500

600

1.0/1 to 1.7/1

8.5 / 3

0 / 1

8.1 / 3

0 / 1

7.3 / 3

18 ft / 5.49 m

27 ft / 8.23 m

16 ft / 4.88 m

2 in / 5.08 cm

52 lbs / 23.59 kg

7.0 sq ft / 0.650 sq m

131 lbs / 59.42 kg

2 years

RG-8 / RG-213

CL-36-M

28, 21, 14

1500

2500

600

1.0/1 to 2.0/1

9.1 / 4

8.6 / 3

8.4 / 3

24 ft / 7.32 m

29.75 ft / 9.07 m

19.25 ft / 5.87 m

2 in / 5.08 cm

69 lbs / 31.30 kg

10.7 sq ft / 0.994 sq m

210 lbs / 95.25 kg

2 years

RG-8 / RG-213

CL-39-M

28, 21, 14

1500

2500

600

1.0/1 to 2.0/1

11.1 / 5

9.8 / 4

36 ft / 10.97

29.75 ft / 9.07 m

27.25 ft / 8.31 m

2 in / 5.08 cm

104 lbs / 47.17 kg

16.05 sq ft / 1.49 sq m

315 lbs / 142.88 kg

2 years

RG-8 / RG-213

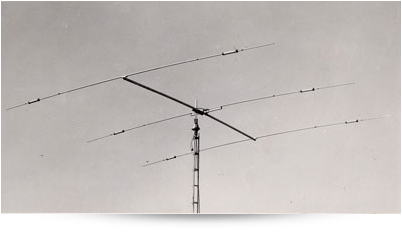

The CL-33-M is a heavy duty 3 element beam for 10, 15, 20 Meters!

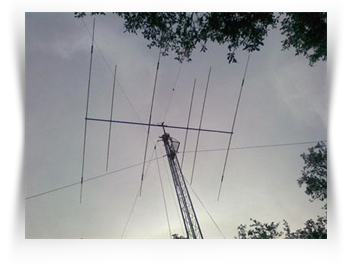

The CL-36-M is designed for the operator who wants the best performance possible in a tri-band antenna. Six wide spaced elements: 4 elements on 10 meters, 3 operating elements on 15 and 20 meters.

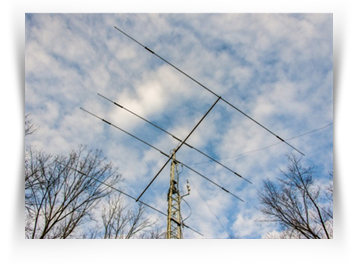

The CL-39, a nine element version for 10, 15, and 20 available on a 36 foot boom 2” or 3” OD. The CL-39 is a tremendous antenna on these bands. No competitor’s antenna of any kind will touch it in strength or performance! Nine wide spaced elements: 5 elements on 10 meters, 4 operating elements on 15 and 20 meters.

The CL-33-M WARC incorporates the Mosley "Q Match" which gives the antenna a bandwidth that is twice as broad as the original CL-33.

UPGRADE YOUR CL-33M WARC
Conversion to 40 or 30 meters is possible with either the TA-40-KR or TA-30-KR. See Conversion Kits for more details.

UPGRADE YOUR CL33 or CL-33M to WARC
Conversion to 12 & 17 meters is possible with the CL-WARC Kit. See Conversion Kits for more details.

Mosley reserves the right to change product and material specifications without prior notice or obligation.

CL-WARC KIT

Adds 24, 18

1500

2500

600

1.0/1 to 1.7/1

0 / 1

+10 lbs / +4.54 kg

+1.0 sq ft / +0.09 sq m

+11 lbs / +4.99 kg

2 years

RG-8 / RG-213
